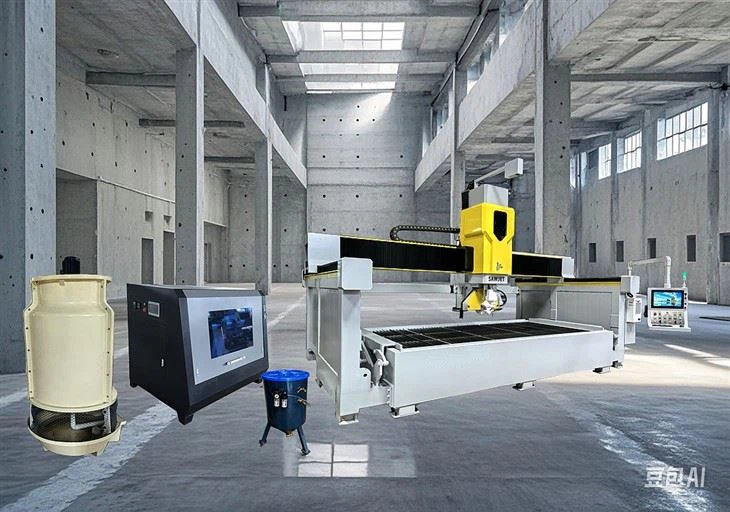

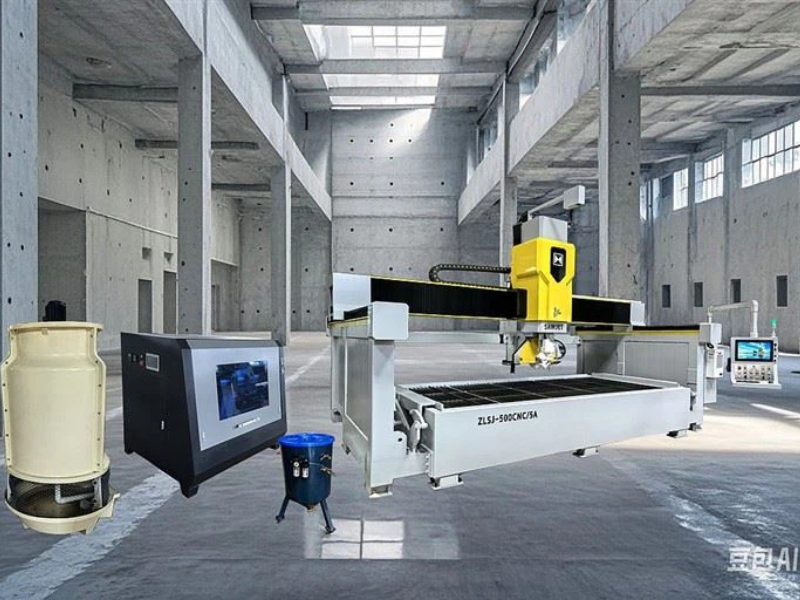

5 Axis CNC Stone Bridge Sawjet

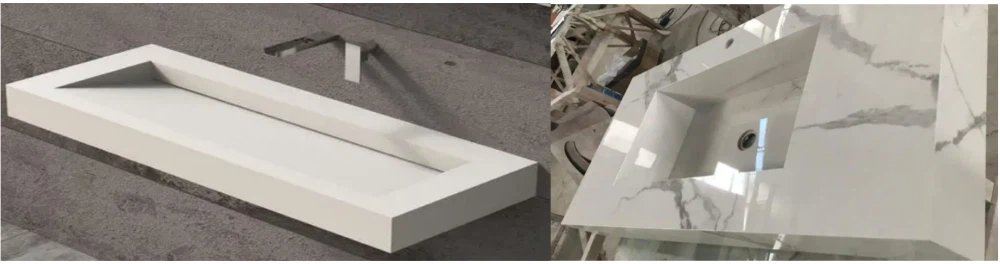

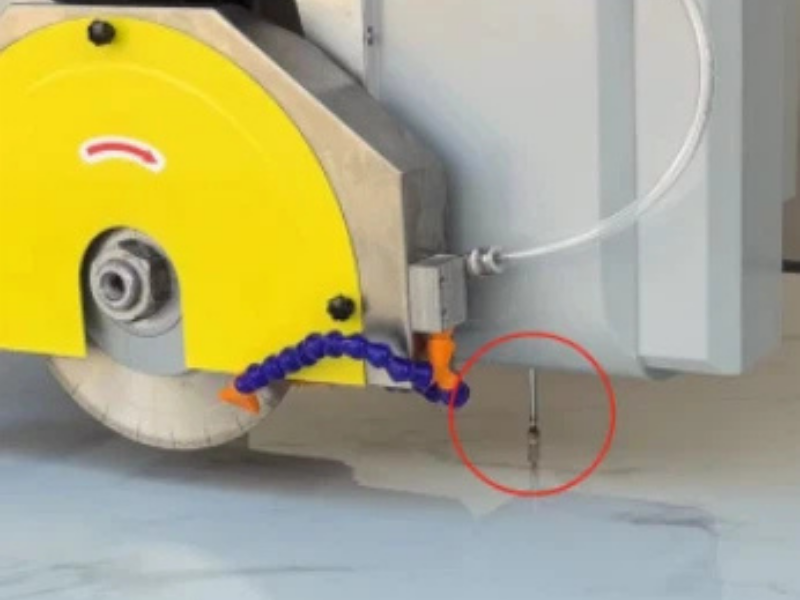

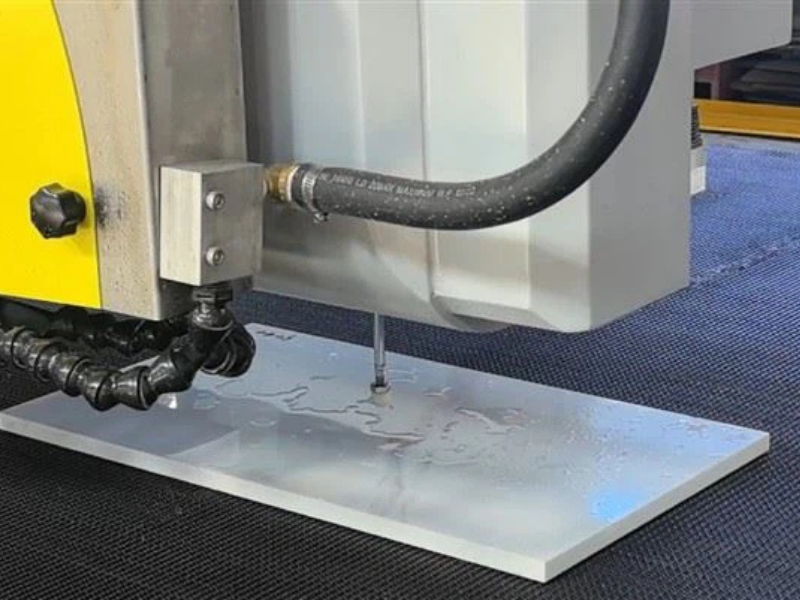

It’s CNC Sawjet Machine,Type: ZLSJ-425CNC/5A, combined function of WaterJet and Bridge Saw. This machine can not only perform efficient Line cutting by Blade Saw, but also can process various curves and small angles by Water jet. It can process stones with high hardness , such as sintered stone, porcelain, ceramic, etc. Making it easy for stone chamfering, basin hole and internal angles processing.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Features
This machine can not only perform efficient Line cutting by Blade Saw, but also can process various curves and small angles by Water jet. It can process stones with high hardness , such as sintered stone, porcelain, ceramic, etc. Making it easy for stone chamfering, basin hole and internal angles processing. The processing method of this machine is flexible and convenient, with a high degree of automation and simple operation. This machine has powerful functions, is a high-end smart 5-AXIS CNC SMART BRIDGE SAWJET specially developed by our company for the home furnishing and cabinet countertop processing. It is currently the most advanced stone processing machine in the stone industry.
Parameters
Model | ZLSJ-425CNC/5A |
Remarks：standard configuration | Table can flip to 85 degree. Water tank and machine chassis are hot-dip galvanized. Electric control box is sealed and equipped with an industrial air conditioner |
Max. Saw blade cutting size (mm) | L3500 xW2300 xT90 |
Max. water jet cutting size (mm) | L3500 xW2000 xT60 |
Work schedule (mm) | X:3660*Y:2640* Z:370 |
Blade diameter (mm) | ₵400 |
Cutting disc flange diameter (mm) | ₵50 |
Saw blade motor power (kw) | 22(Self-developed five-axis specialized permanent magnet main motor with Frequency) |
Saw blade speed (r/min) | 0-4000 |
Waterjet motor power (kw) | 37 |
Total power (kw) | 69 |
Dimensions (mm) | 5800 x 3950 x3960 |
Dimension With Front Sliding Door(Optional) (mm) | 6250 x 4930 x3960 |
Water consumption (m³/h) | 3 |
Air pressure required (Bar) | 6 |
Total weight (Kg) | 9100 |
FOB Price | Negotiable |
Option：4 pieces of Front sliding doors | Request information |
WIth high voltage system
|
Power |
motor 37KW |
|
|
Oil pump discharge capacity |
80ML/R |
|
|
Flow |
3.7L/min |
|
|
Nozzle |
0.33mm |
|
|
Rated pressure |
450Mpa/Psi |
|
|
Working pressure |
10-380Mpa/Psi |
|
|
Boost ratio |
20:1 |
|
|
Inner hole size of sand tube |
1.02 mm |
|
|
Max. sand qty |
0-350g/min |
|
|
Max. stroke |
50times/min |
|
|
power |
220V |

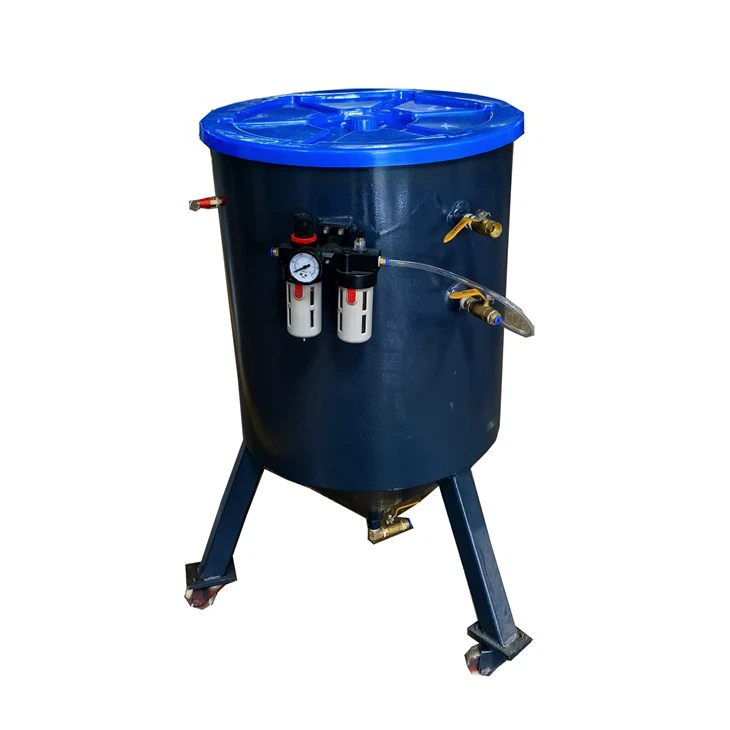

With Automatic Sand-feeding system
Capcity：100 KL
Working Pressure：0.2-0.3MPa
This system provides a sand storage function for waterjet cutting machine,automatically transferring abrasive to the sand pan, which is easy to operate and can improve the automation level of the equipment and reduce the labor intensity of operators. The 100-liter volume ensures the required amount of sand for cutting continuously for 200 to 300 minutes.

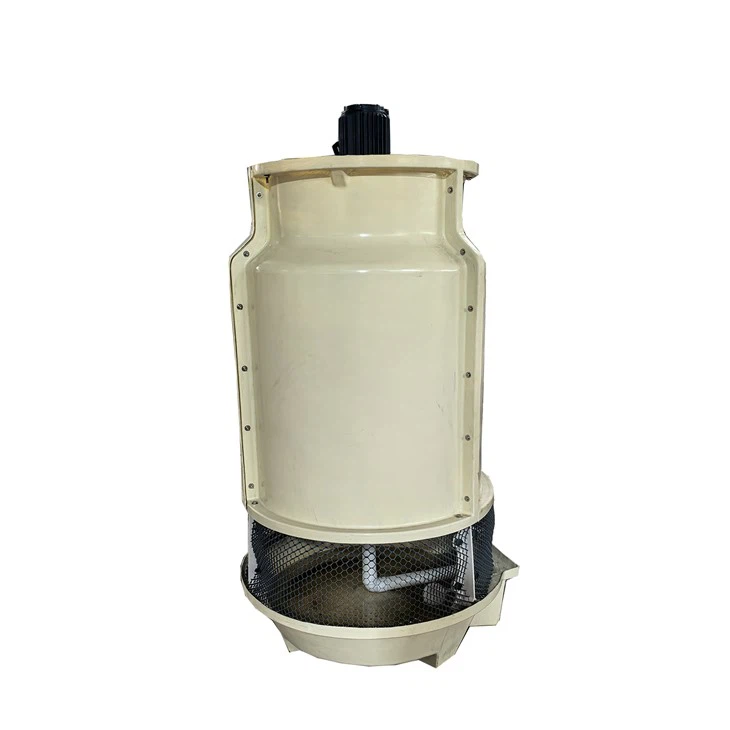

With cooling tower
Diameter: 800mm
Height: 1500mm
Cooling Capacity: 3 m3
In order to effectively control the oil volume, an economical and practical cooling tower is used for cooling. The cooling tower system can effectively control the temperature rise of the oil temperature during the operation of the high-pressure system, thereby extending the service life of the sealing box and high-pressure parts, and at the same time reducing the waste of water.
- This machine is equipped with an industrial camera to catch an image of the plates on the workbench. Operators can place the drawing design on the plates and program on it.

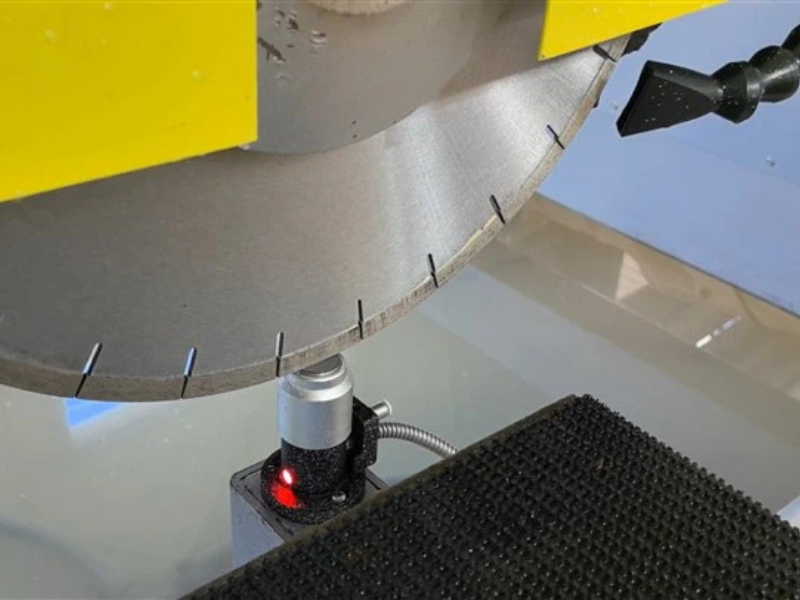

- This machine is equipped with a tool setting Gauge to automatically measure the diameter of the saw blade, and a thickness measuring Probe to measure the thickness of the stone.
- This machine is equipped with high-end RTCP five-axis CNC controller + industrial touchscreen computer + smart cutting software, and is driven by bus servo. The system has built-in convetional shape library and countertop templates library, supporting data size input. Operators can also import DXF format drawing file or design drawings by collection point coordinate drawing function. The operation of this machine is simple and easy to learn. It can access the Internet through wired network, WiFi or mobile phone wireless sharing. The system is easy to get updated, Zhongli Machinery can assist operators to solve operationa questions and troubleshoot through remote linking .
- This machine is equipped with a laser thickness Measuring Gauge, which can accurately measure the thickness deviation of slabs. It can make compensation for the thickness deviation after system calculation, making the water jet chamfering more accurate.
- Since 80% works of sawjet will be done by saw cutting, the production cost per meter and the maintenance cost is much lower than that of a water jet.
- The water jet and saw cutting are combined to work together,which enables higher efficiency than a single bridge saw or water jet. Moreover, it can reduce the times of plate transportation from one machine to the other.
