Alexia Gen2 CNC CENTRES
The Alexia Gen 2 is designed for efficiency and ease of use. With 23 tool stations and automatic tool changing, it can perform a wide range of operations, including cutting, drilling, and polishing complex shapes. The intuitive MS Windows-based operating system simplifies setup and programming, even for less experienced operators. Pre-loaded sink templates from major brands and optional tool sets for edge profiling expand its capabilities.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
DESIGN FEATURES

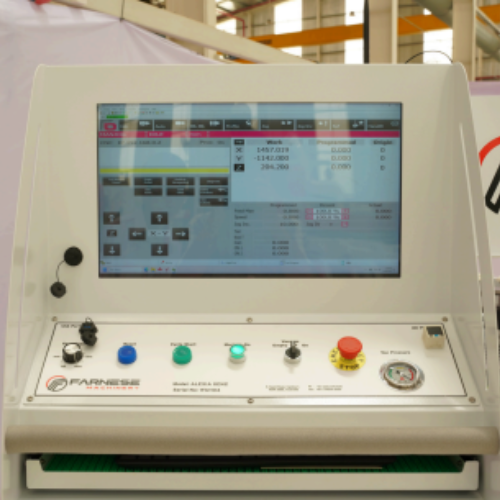

EASY TO USE SOFTWARE
A POWERFUL, YET INTUITIVE INTERFACE MAKES OPERATING THE GEN 2 A BREEZE.

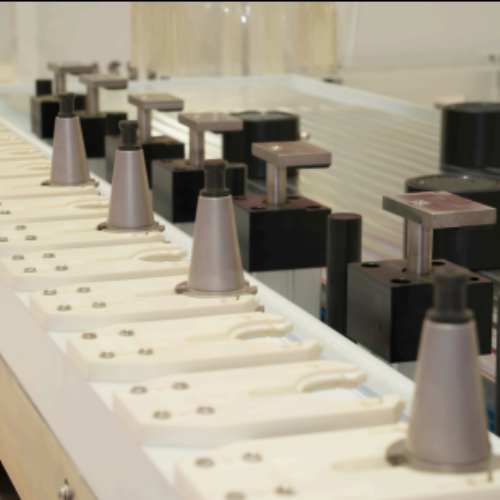

23 TOOL CHANGE
FITTED WITH FULLY AUTOMATIC TOOL CHANGING AND MAKING USE OF IT’S 23 TOOL STATIONS.
EDGE PROFILING AND POLISHING
EDGE PROFILES LIKE BULLNOSE, LAMBSTONGUE, ETC ARE EASILY ACHIEVABLE WITH THE ADDITION OF OPTIONAL TOOL SETS.
COMPACT 3 AXIS CNC
EQUALLY SUITED TO BOTH SMALL AND LARGE STONE SHOPS.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Hydraulic tilt table makes slab loading safe and easy
- Laser cutting guide ensures precise, accurate cuts

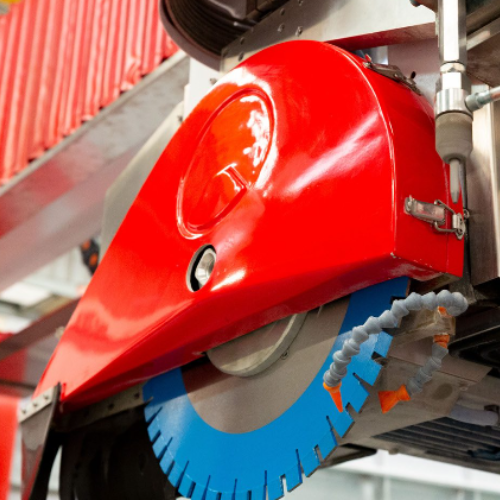

- Supports blades up to 550 mm, ideal performance at 400 mm
- Motorized head movement with 45° tilt for mitre cuts
- 360° rotating table with lock points for flexible positioning
- Dual cutting modes with programmable automatic operation.
Product Technical Details & Dimensions
| Dimensions of Installed Machine | Metric | Imperial | |
|---|---|---|---|
Length | 4500 mm | 165.4 in | |
Width | 2200 mm | 86.6 in | |
Height | 2300 mm | 90.6 in | |
Weight | 2500 kg | 5500 lb | |
Table | |||
Length | 4000 mm | 157.5 in | |
Width | 1700 mm | 66.9 in | |
Features and Feeds | |||
X Stroke (Cross Travel Stroke) | 3000 mm | 118.1 in | |
Y Stroke (Long Travel Stroke) | 1100 mm | 43.3 in | |
Z Stroke (Head Up and Down) | 200 mm | 7.9 in | |
Air Pressure (Working) | 6 bar | 87 psi | |
Air Pressure (Consumption) | 350 l/min | 12.3 cfm | |
Water (Consumption) | 6.5 l/min | 1.7 gal/min | |
Magazine | Clear | 7 / 6 POS | |
Recycled | 12 / 22 POS | ||
Vacuum Cups | Yes | Yes | |
Vacuum Generator | Yes | Yes | |
Back Clamps | Yes | Yes | |
Front Clamps | Yes | Yes | |
Automatic Greasing | No | No | |
Laser Cutting Guide | Yes | Yes | |
Microsoft Windows Compatible | Yes | Yes | |
Automatic Tool Changer | Yes | Yes | |
Handwheel | Yes | Yes | |
Main Spindle Power (Min & Max) | 6.6 kW | 8.8 hp | |
Main Spindle Speed | 500 – 1200 rpm | 500 – 1200 rpm | |
Power Required | 400V 3ph 50Hz | 208v 3ph 60Hz | |
20A + Neutral | 40A | ||
Connections Required (Supplied By Customer): | Power, Water, Compressed Air | ||
Tooling | Consult Your Local Farnese Dealer For Any Tooling Required | ||
