The Latest 5＋1 CNC Bridge Saw with Italy ESA System

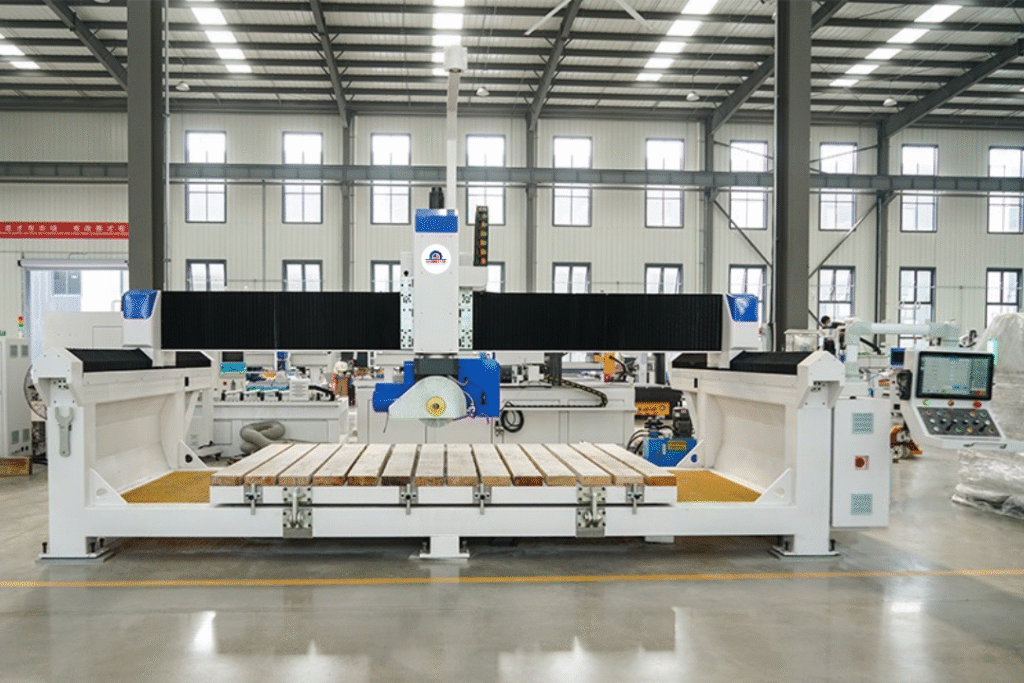

The latest 5+1 CNC bridge saw machine can cut and trim granite, marble, artificial stone, slate and other stones at any angle and shape. The key parts of the machine are imported high-quality accessories, and the system adopts the Italian ESA system, which has fast and stable operation. The corresponding servo and touch display are also the same brand as ESA.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Features
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
2. The slab can be positioned by taking photos. In addition, this machine can automatically plan the cutting path directly from the generated map, greatly improving processing efficiency.

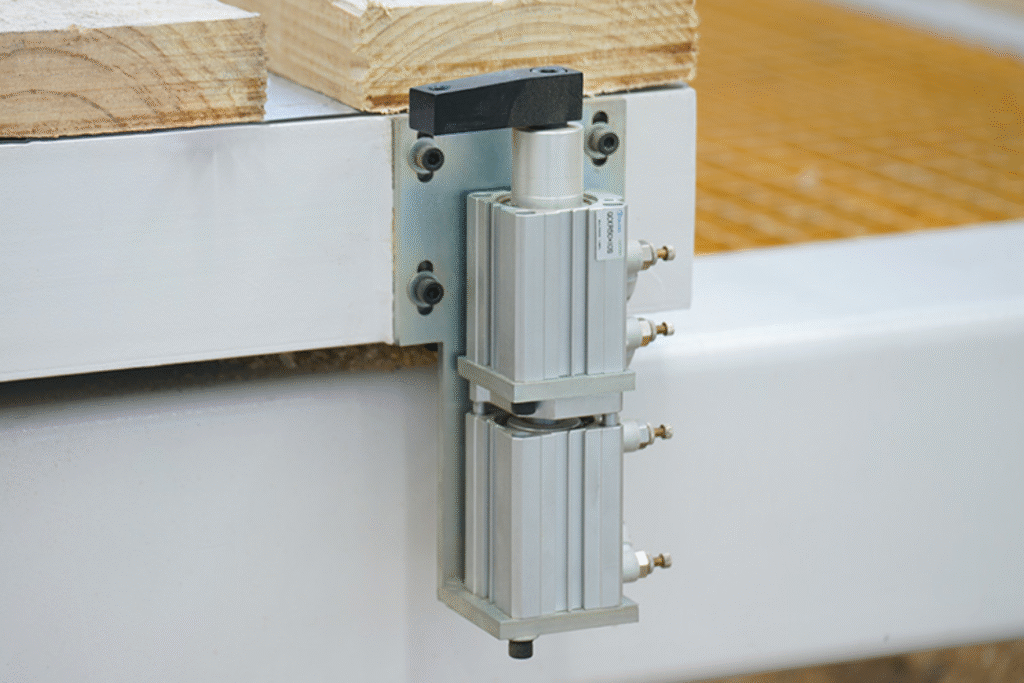

3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 85°.
4. The Italian servo motor is used to complete circular cutting, square cutting, fan cutting, oval cutting, 45° bevel cutting, drilling, outer edge polishing, etc.
Parameters
| 5＋1 Stone CNC Bridge Saw Machine | ||
| Working travel | X, Y, and Z | 3200*2000*350mm |
| C axis | ±360° | |
| A axis | 0-90° | |
| Moving speed | X axis | 30m/min |
| Y axis | 30m/min | |
| Z axis | 15m/min | |
| Servo motor | Italian Servo | |
| Guide rail | X, Y，and Z: # 30 (Taiwan Brand) | |
| Rack | X、Y | 2M |
| Worktable | Structure | Square timber |
| Worktable size | 3200×2000mm | |
| Turning angle | 0-85° | |
| Max. weight for turning | 800KG | |
| Saw | Dimension | 350-450mm |
| Max. cutting thickness | 100mm | |
| Ball screw | Z | 3210 |
| Reducer | X/Y: Japan SHIMPO | |
| Saw motor | 22KW permanent-magnet saw blade motor rated: 3000r/min, maximum: 4000r/min |
|
| Saw Motor Driver | Motor comes with | |
| Control system | Italy ESA System | |
| Low-voltage electronics | French SCHNEIDER | |
| Working air pressure | 0.6-0.8 Mpa | |
| Voltage | 380V/3P/50HZ | |
| Machine size | 5.85×4.5×3.3m(With chassis) | |
| Machine weight | 5.5ton | |
| Spindle | Shengfeng 5.5KW water-cooling spindle(Cannot switch to other brands due to size) | |
| Water Cooler | CW-5000TI Single 220V 50/60HZ Universal | |
| Inverter | Fuling 5.5KW | |
Application
This 5+1 bridge saw machine can complete the cutting, chamfering, trimming, etc. of various stones, and can realize countertop cutting, Roman column cutting, arc cutting, etc. It can be used in sanitary ware, stone furniture, interior decoration and other industries. It is used to make washbasins, bathroom countertops, kitchen countertops, etc.
