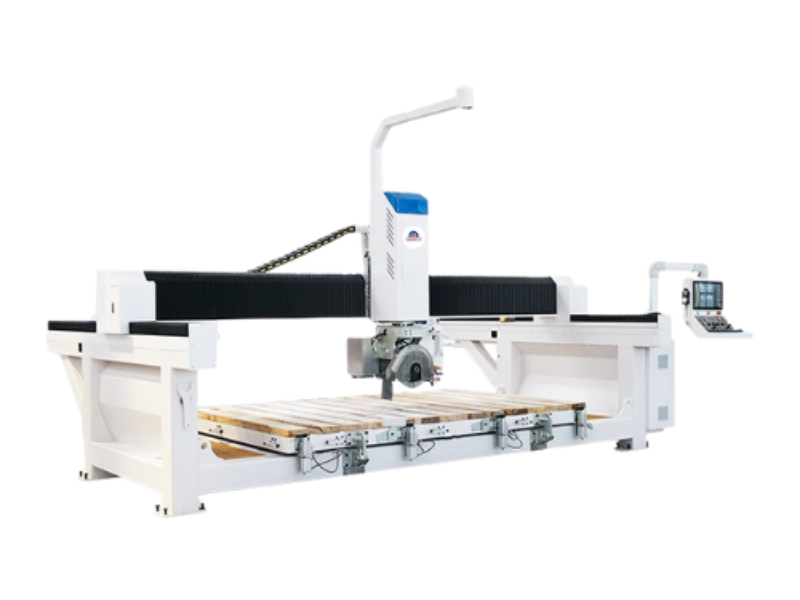

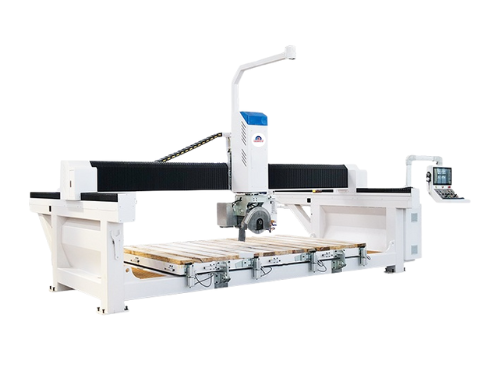

MTBECNC-4AXIS+1 with Material Shifting Function
This MTBECNC-4AXIS+1 bridge saw has an additional 5.5kw water-cooled spindle. It can work alternately with the saw blade, so it greatly improve processing efficiency.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Description
This MTBECNC-4AXIS+1 bridge saw features a 5.5KW liquid-cooling spindle that can alternate with a saw blade, significantly improving production efficiency. Additionally, compared to the standard bridge saw, it includes an industrial camera and material-shifting function. This allows users to select desired patterns from the system’s preset designs, greatly reducing drawing tim
Features
1.The MTBECNC-4AXIS+1 bridge saw can realize cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45°chamfering, under-counter basin and in-counter basin cutting, etc.
2.The saw blade diameter of this 4+1 bridge saw is 350mm, and the spindle speed is 24000rpm/min. It can achieve a maximum cutting thickness of 80mm, and the spindle and saw blade can work alternately without affecting each other.
3.It uses an industrial camera, you can select the pattern you want from the system preset patterns, set parameters such as side length and angle, and plan the path. The camera takes pictures, which greatly saves drawing time.
4.This machine is equipped with a suction cup to realize the material moving function and avoid accidental cutting of surrounding materials.

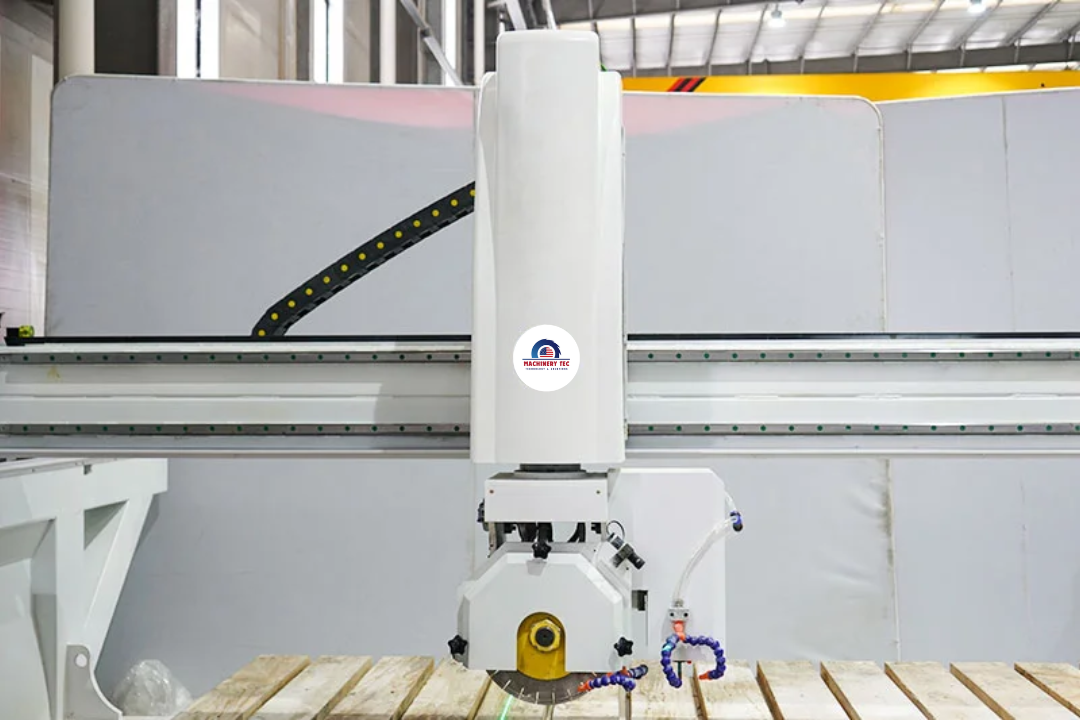

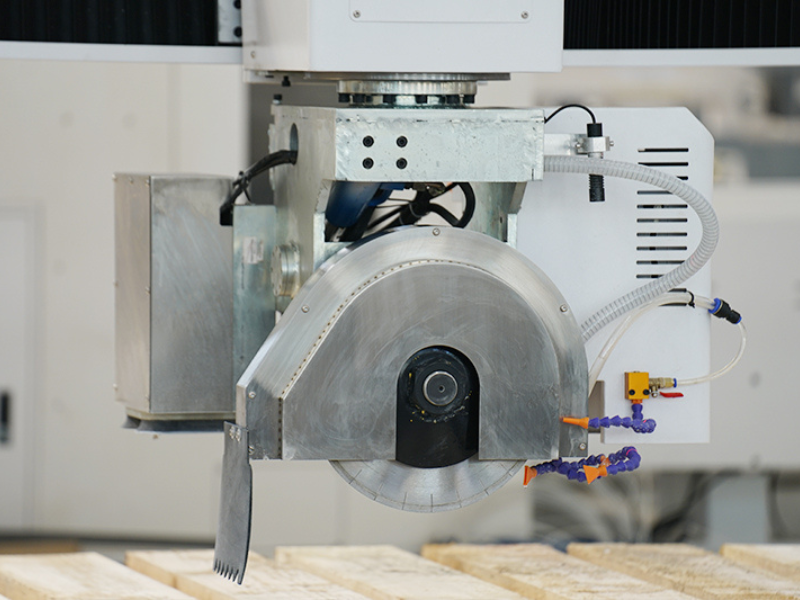

MTBECNC-4AXIS+1 Bridge Saw Details
Parameters
| MTBECNC-4AXIS+1 | ||
| Travel | 3 axis | 3200*2000*400mm |
| C axis | ±360° | |
| A axis | 0/45° | |
| Control System | 5 Axis System | |
| Motor & Drive | Serve motor and drive | |
| Turning Table | Size | 3200×2000mm |
| Flip angle | 0-85° | |
| Saw Blade | Diameter | 350mm |
| Maximum thickness | 80mm | |
| Spindle | Power | 5.5kw |
| Rotating speed | 24000rpm | |
| Voltage | 380V,3PH,50/60HZ | |
| Motor power | 15kw | |
| Motor speed | 3300rpm | |
| Machine size | 5.36m×3.3m×2.41m | |
Application
Stone Countertops: Custom-sized and designed countertops can be precisely crafted from granite, marble, or quartz slabs, ensuring a perfect fit for any space.
Architectural Stone: Ideal for cutting and shaping architectural elements such as exterior cladding, facade details, columns, and other structural or decorative stone pieces.
Flooring and Wall Tiles: Large stone slabs can be cut into uniform, high-quality tiles, creating seamless and visually stunning surfaces for floors and walls.
Monuments and Memorials: Capable of producing intricate designs, engraved lettering, and custom shapes to honor individuals or commemorate special events with elegance.
Furniture and Artistic Pieces: Perfect for crafting bespoke furniture, sculptures, and decorative items from stone or wood, blending functionality with artistic expression.
