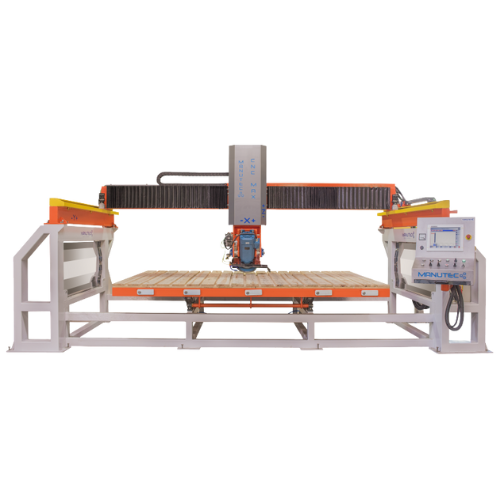

MAX 5 AXIS CNC Bridge Saw
The CNC Bridge Saw MAX 5-Axis combines power, precision, and technology for advanced stone cutting. Equipped with a 12.5 HP WEG motor, 15” touchscreen control, and five-axis motion (X, Y, Z, U, W), it allows for straight, “L”, and complex DXF-designed cuts with high dimensional accuracy. Features like automatic lubrication, adjustable cutting speed, laser guides, and wireless remote control ensure efficiency, safety, and exceptional results in every operation.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
MAX 5 AXIS CNC Bridge Saw
- Table with marine plywood base and pine cutting surface;

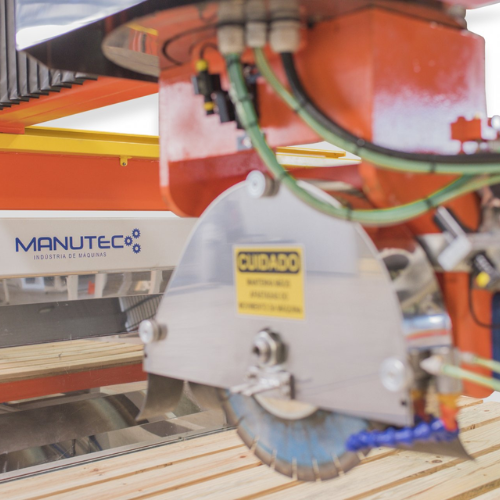

- Uses 350 mm or 400 mm blade;

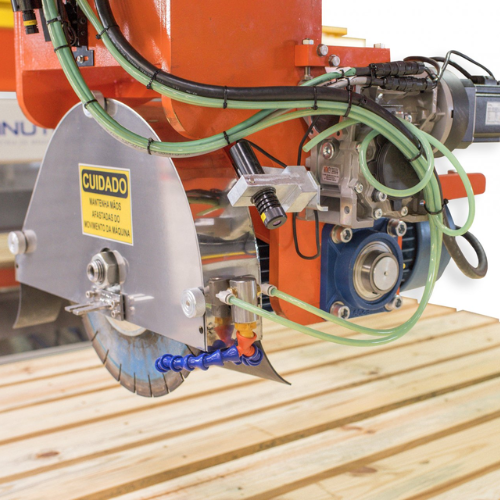

- Main WEG chainsaw-type motor dedicated to cutting, 12.5 HP;
4-axis movement system: “X”, “Y”, “Z”, “U” (0°–360° rotation) and “W” (0°–90° head tilt) with servo motor and planetary reducer for precise movement and dimensional accuracy; - Main control panel with power commands and quick-access operation panel;
15″ touchscreen panel with multiple cutting modes: straight, “L”, predefined shapes, free cuts, point-to-point function, various milling, bench drilling, Italian rebates, multiple holes, and DXF-designed cuts; - Ability to add new DXF cuts via USB or Wi-Fi;
- Adjustable cutting speed according to material;
- Automatic centralized lubrication system for linear guides;
- Installed power: 17 HP – 220/380V;
- Overall dimensions: 5800 x 2600 x 2300 mm (L x W x H).
Optional features included:
Water pump with solenoid valve;
Stainless steel side cover;
Laser guide and laser point for point-to-point function;
Pneumatically tilting table;

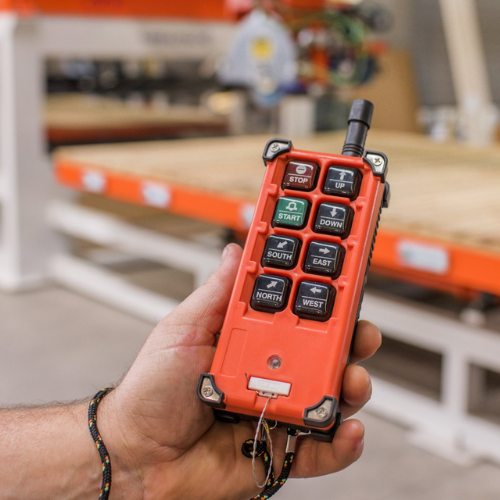

Wireless remote control for head positioning;
Accordion-style X-axis protection.
