MTGOLDENCNC5AXIS+1

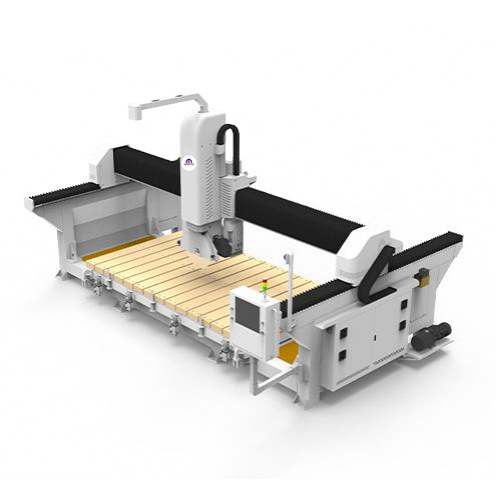

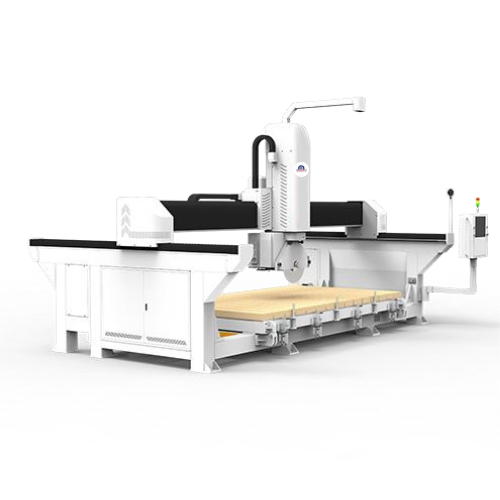

MTGOLDENCNC5AXIS+1 Stone Bridge Saw is a high-end intelligent processing equipment deeply customized for the stone industry. Featuring an innovative 5+1 axis linkage structure, heavy-duty steel frame, and military-grade precision transmission components, it efficiently processes various hard materials including quartz, sintered stone, granite, and marble.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Features
MTGOLDENCNC5AXIS+1 Stone Bridge Saw is a high-end intelligent processing equipment deeply customized for the stone industry. Featuring an innovative 5+1 axis linkage structure, heavy-duty steel frame, and military-grade precision transmission components, it efficiently processes various hard materials including quartz, sintered stone, granite, and marble.
Designed with multifunctional integration and intelligent operation at its core, this machine enables end-to-end processing from basic cutting to complex 3D contouring through a unified CNC system. Significantly reducing manual dependency, it delivers a material-saving, time-efficient, and labor-saving all-in-one solution for applications ranging from small stone workshops to large-scale architectural projects.
Parameters
| Name | MTGOLDENCNC5AXIS+1 Bridge Saw |
| Model | MTGOLDENCNC5AXIS+1 |
| X-axis travel | 3600mm |
| Y-axis travel | 2000mm |
| Z-axis travel 1 | 255 mm （Blade diameter: 400 mm） |
| One axis | 0-90 ° |

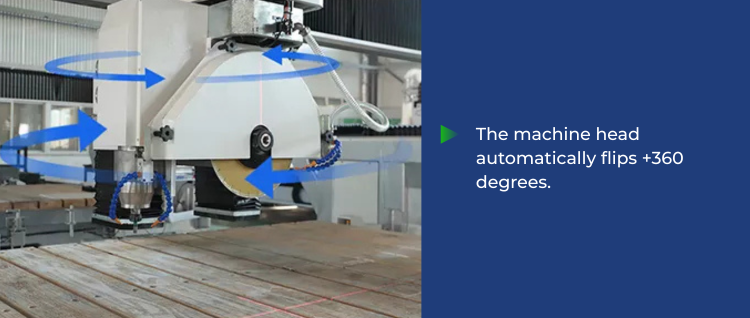

| Axis C | 360° |
| Saw blade motor power | 15 kw/18.5 kw/22 kw |
| Spindle | HQD 6KW Air-Cooled Spindle |
| Blade diameter | 350-500mm |
| Input power | 3-phase power supply 3V/380V 220-50Hz 60A |
| Body | Sturdy bed |
| Plant bed | steel structure |
| table | Automatic copy feeder |
| railway guide | Taiwan HIWIN |
| Rack | Taiwan YYC |
| Screw | TBI Taiwan 5010 Screw |
| Motor | IGOLDENCNC |
| System | IGOLDENCNC |
| Water pump | Standard |

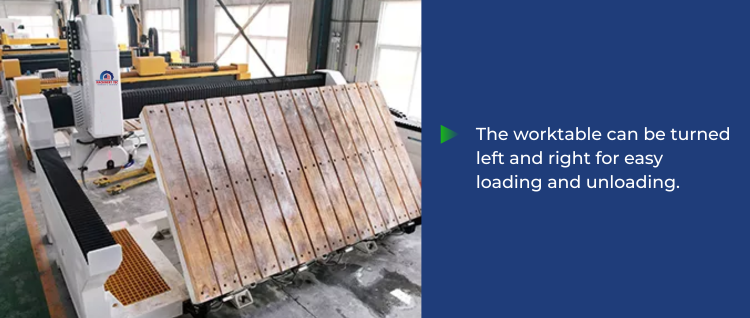

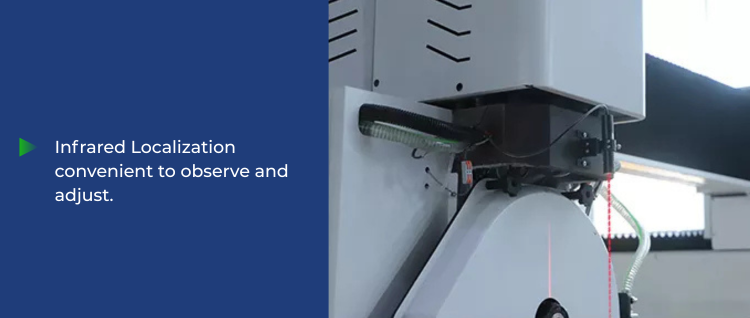

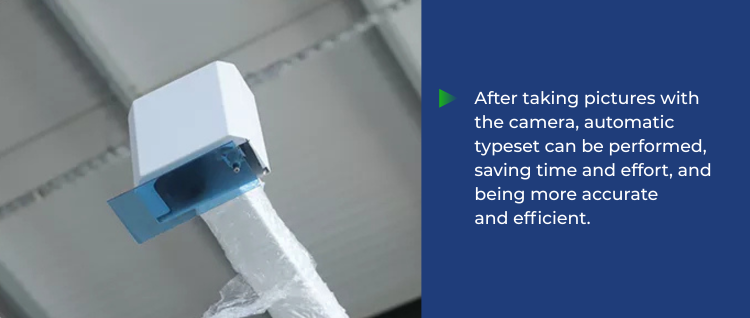

| Default configuration function | Table inversion, crosshair red light positioning, tool setup tool, dial indicator, tool suspension, table cleaning, work camera, pressure |
| Optional Features | Pressing, suction cup movement, photo layout, probe, dust-free installation measurement software |

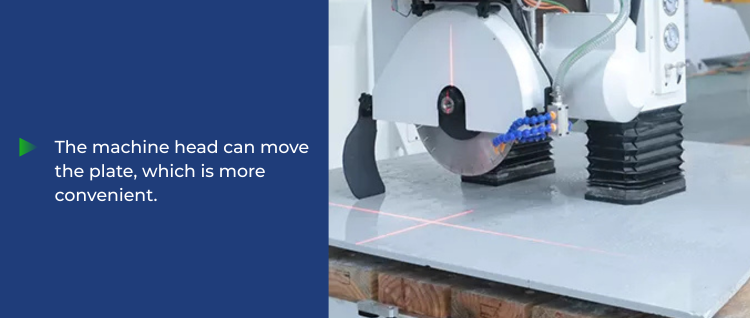

Product Details

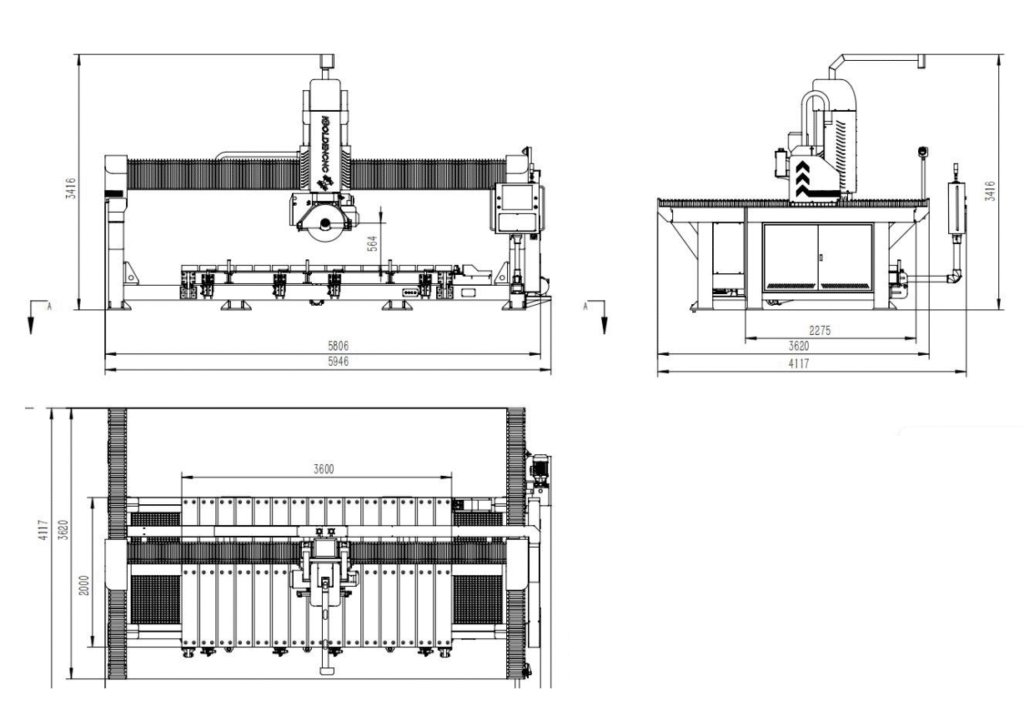

Product Dimensions (for 3620 size)

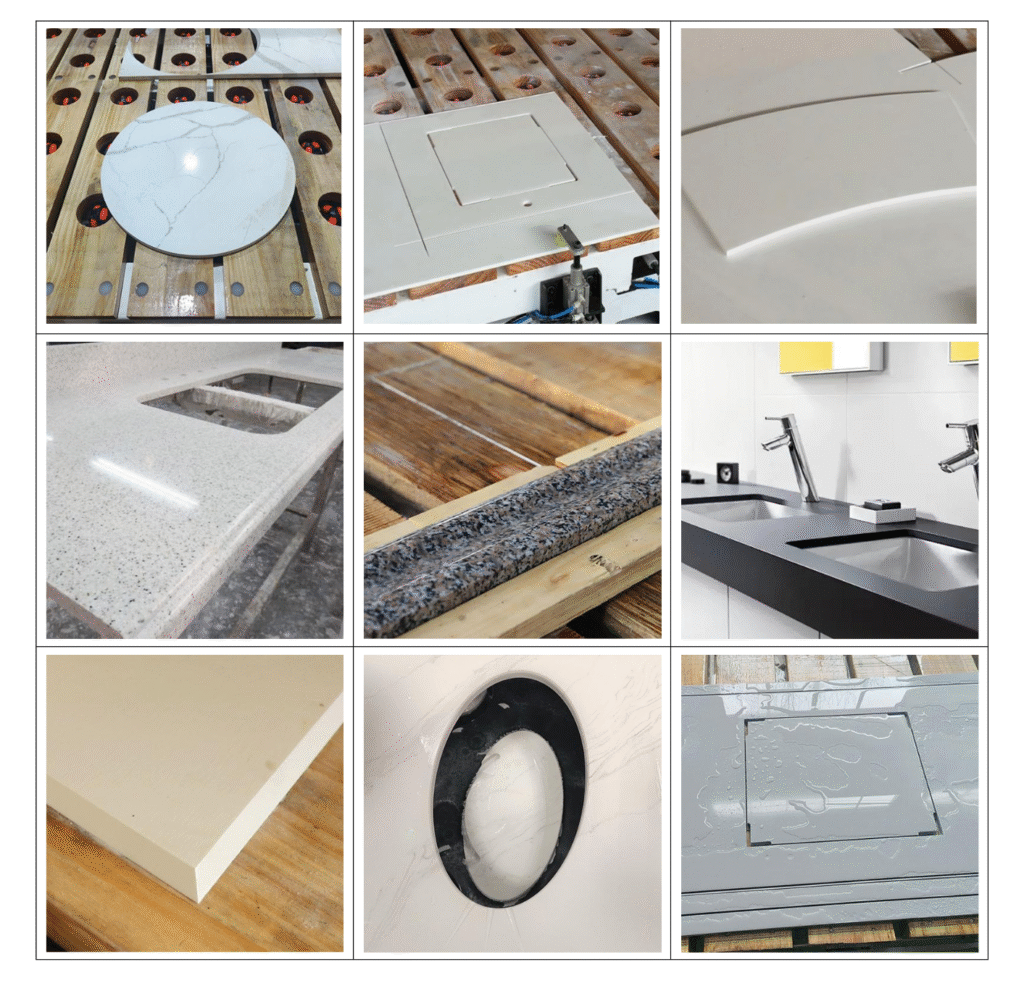

Scope of application:
The high-efficiency stone bridge cutting machine designed by Machinery Tec adopts high-strength mechanical structure, which is very suitable for manufacturers who process special-shaped stone in batches. Imported linear guide rails are used to ensure accuracy and provide a set of competitive configurations.
Popular applications include:
>Decoration industry: special-shaped lines and relief carvings of stone background walls;
>Stone countertops with digging basin holes and European borders: suitable for cabinet artificial stone, quartz stone, granite, marble countertops and sinks, kitchen countertops, bathroom countertops, special-shaped bar counters, stone coffee table countertops, basin hole cutting, back-arc water forming And polishing, etc.;
>45-degree side cutting, 90-degree right angle splicing and special-shaped processing:
>Drilling, grinding, trimming, carving, cutting, polishing and engraving of other special-shaped stones, ceramics, glass and ceramic stones.
