Details

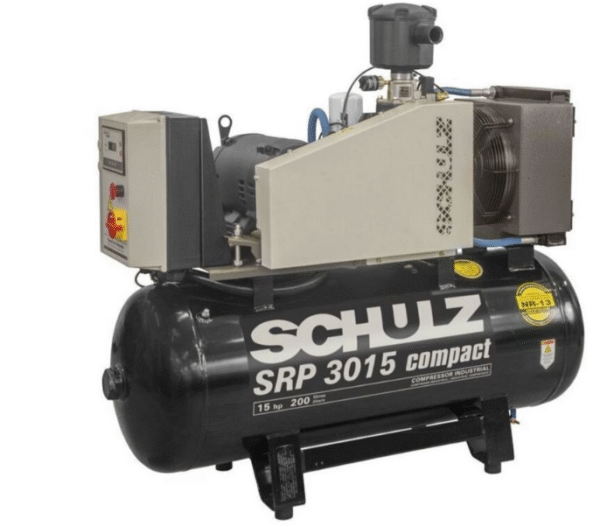

SCHULZ 15 HP ROTARY SCREW OPE CABINET 59 CFM
15 HP ROTARY SCREW WITH 60 GALLON TANK,
2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION
PART # 970.3454-0
TEFC, IP55, degree of protection electric motors;
Automatic starters with phase and sequence failure detection;
Lubricated air-end;
Low maintenance costs;
Low oil consumption;

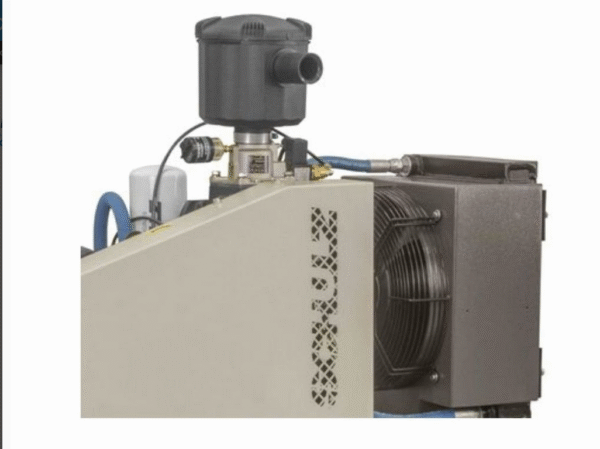

Coolers are on the top of the machine, improves heat recovery at customer’s facilities;
Modern design products;
High efficiency electric motors;
Thermostatic valve for working temperature control;

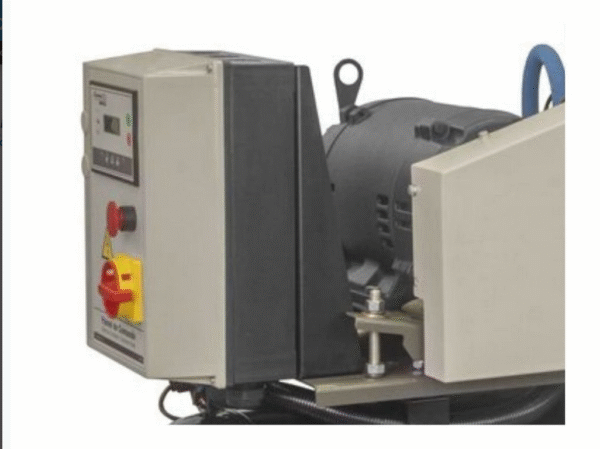

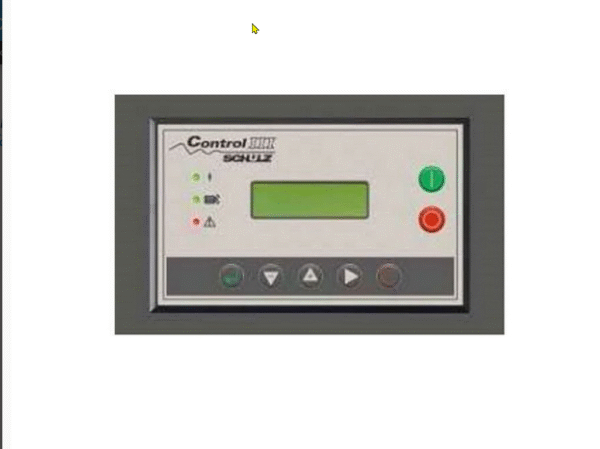

24V Command panel.

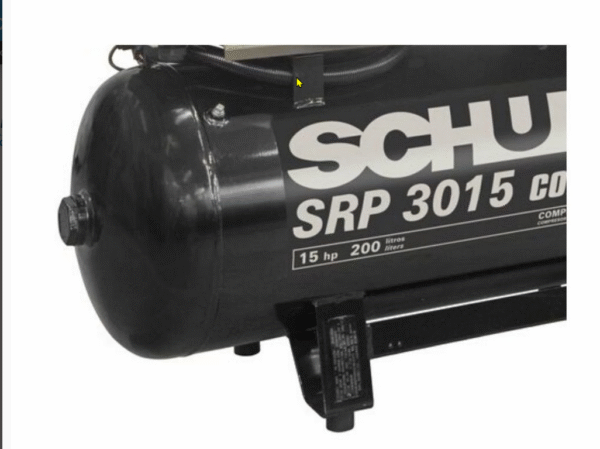

60 gallon tank
MOTOR
| Voltage | 230/460 Volt AC |
| Phase | 3 Phase |
| dBA | 86 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
ENGINE
| HP | 15 |
PUMP
| CFM | 59 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Duty Cycle | 100% |
TANK
| Tank Size | 60 Gallons |
| Tank Included | Yes |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
ACCESSORIES
| Air Filter | Yes |
OVERVIEW
| Weight | 463 Pounds |
| Consumer Warranty | 2Year |
| Commercial Warranty | 2 Year |
| Product Length | 53 Inches |
| Product Width | 24 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
