Details

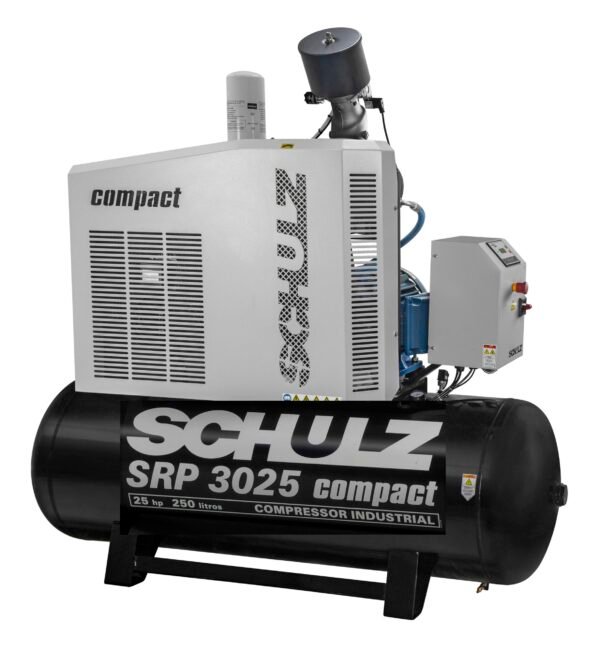

SCHULZ SRP 3025 COMPACT- 25 HP ROTARY SCREW COMPRESSOR WITH 80 GALLON TANK
2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION
- PART # 970.2840-S
- TEFC and IP55 electric motor protection
- Automatic starters with phase and sequence failure detection
- Lubricated air end
- Low maintenance costs
- Low oil consumption
- Coolers mount on top of machine
- Thermostatic valve for temperature control
- Maximum ambient temperature 113 °F/45ºC
- Synthetic oil
- Y Starter with soft-starter (optional)
- 24V MICROPROCESSOR CONTROLLER
- Easily adjustable parameters of operation
- Provides constant reading for simple monitoring
- Helps simplify troubleshooting compressor issues
| Product Category | Air Compressor – Stationary |
MOTOR
| Voltage | 460 Volt AC |
| Phase | 3 Phase |
| dBA | 86 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
ENGINE
| HP | 25 |
PUMP
| CFM | 105 |
| CFM Rated @ | 125 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Duty Cycle | 100% |
| Pump Low Oil Shut-off | No |
TANK
| Tank Size | 80 Gallons |
| Tank Included | Yes |
| Tank Included | Yes |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
OVERVIEW
| Weight | 864 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 61 Inches |
| Product Width | 26 Inches |
| Product Height | 60 Inches |
| Power Type | Electric |
