Details

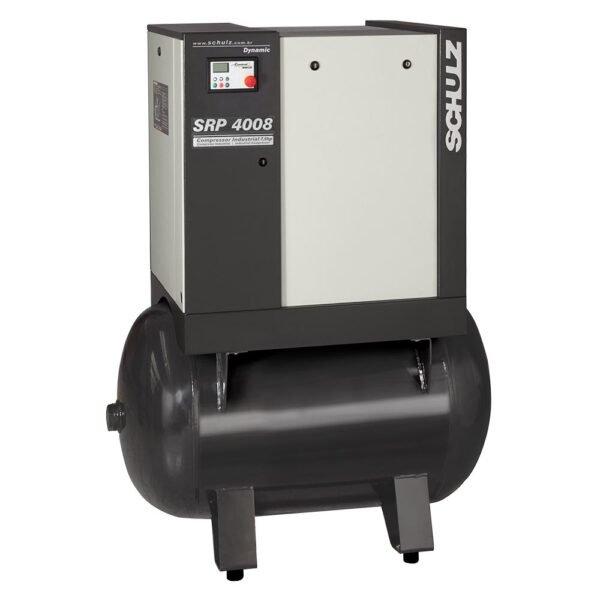

SRP 4008 DYNAMIC
28CFM
61 GALLON TANK
EXTREME LOW DBA
FULLY COMPUTERIZED
2 YEAR WARRANTY AIR END
1 YEAR WARRANTY EVERYTHING ELSE
5 YEAR WARRANTY AVAILABLE– CALL FOR MORE INFORMATION
- PART # 970.3980-0

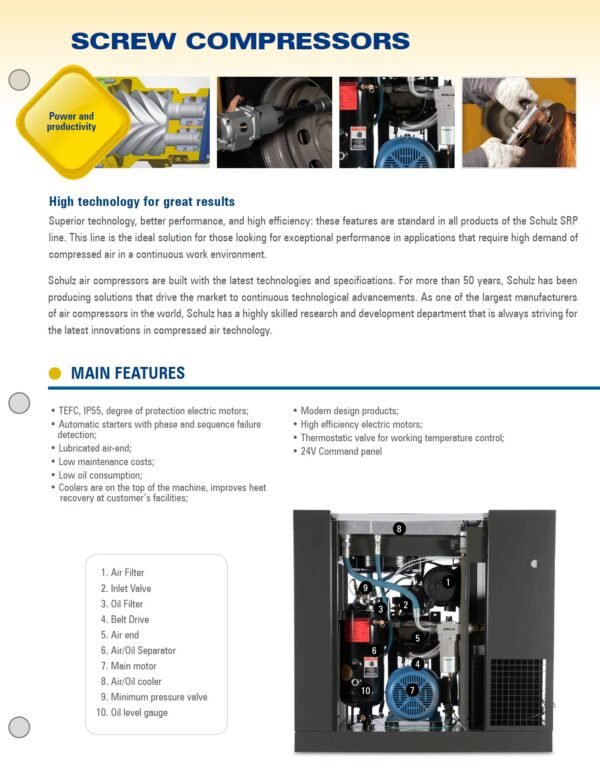

- TEFC, IP55, degree of protection electric motors;
- Automatic starters with phase and sequence failure detection;

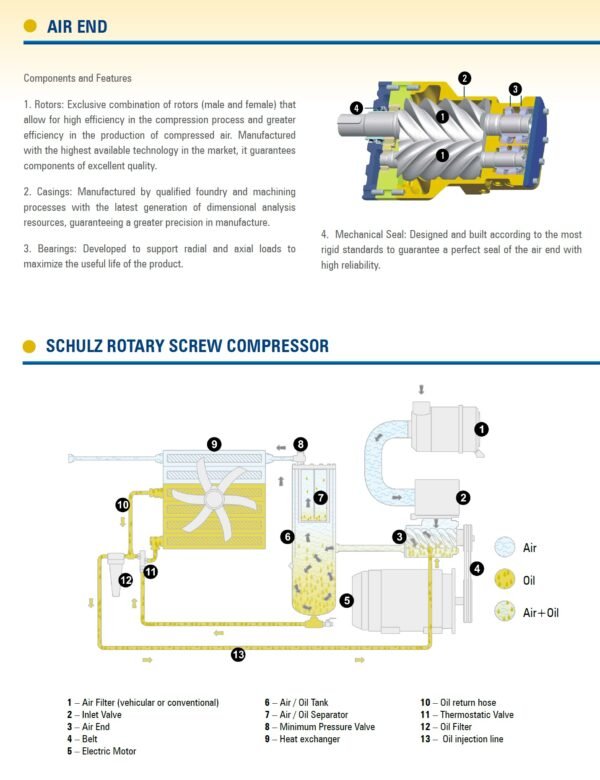

- Lubricated air-end;
- Low maintenance costs;
- Low oil consumption;
- Coolers are on the top of the machine, improves heat recovery at customer’s facilities;
- Modern design products;
- High efficiency electric motors;
- Thermostatic valve for working temperature control;
- 24V Command panel.
- Operational Settings
- Operation method – load/unload
- Remote/local
- Auto restart
- Maintenance time to air filter, oil filter and air/oil separator, oil and main motor grease
- Pressure and temperature units
- Starts per hour
Error Messages
-
- Main motor and fan motor overloaded
- Phase fault or incorrect sequence
- Emergency
- High pressure
- High temperature
- Pressure and temperature sensor
Advantages
-
- Low Speed
- Low noise level
- Foam coated steel cabinet for noise reduction
Low discharge temperature
-
- Oversized cooling system
- Longer oil and oil separator life time
- Compressor prepared to handle higher ambient temperatures
- Discharge temperature around 10°C above the ambient.
Low maintenance
-
- Synthetic oil
- Robust belts
- Oversized separator elements – low ppm and longer life time
- Oversized separator elements – low ppm and longer life
- Easy access to components for quick and simple maintenance
Safety
-
- Belt guard
- 24 V command panel
- Fault and sequence phase relay
- High temperature protection
Product Category Air Compressor – Stationary MOTOR
Voltage 2300 Volt AC Phase 1 Phase dBA 69 Amp Draw Consult Certified Electrician Recommended Breaker Consult Certified Electrician ENGINE
HP 7.5 PUMP
CFM 27 CFM Rated @ 125 PSI Max PSI 125 PSI Oil Sight Glass Yes Pump Type Rotary Pump Drive Belt Drive Oil Type Oil Lubricated Duty Cycle 100% Pump Low Oil Shut-off No TANK
Tank Size 60 Gallons Tank Included Yes Tank Outlet 1/2 Inch Electronic Drain Valve No Tank Orientation Horizontal ACCESSORIES
Air Filter Yes OVERVIEW
Weight 500 Pounds Consumer Warranty 1 Year Commercial Warranty 1 Year Product Length 49.4 Inches Product Width 23.6 Inches Product Height 53.5 Inches Power Type Electric
