Details

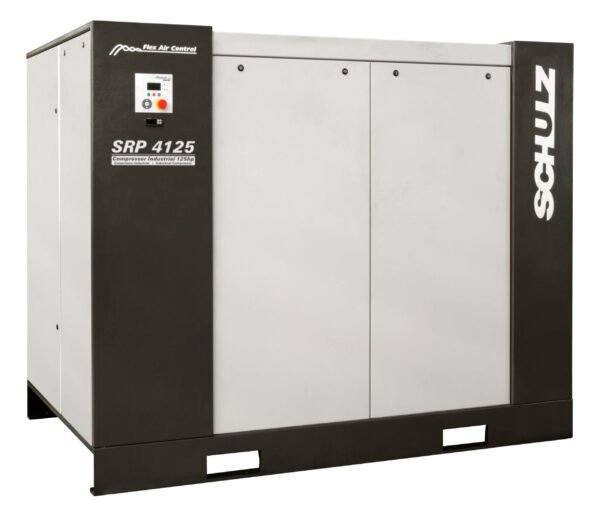

SCHULZ SRP4125 FLEX 125 HP VARIABLE SPEED 500 CFM
DIRECT DRIVE
500 CFM
EXTREME LOW DBA
FULLY COMPUTERIZED
2 YEAR WARRANTY ON THE AIR END AND 1 YEAR WARRANTY EVERYTHING ELSE,
5 YEAR EXTENDED WARRANTY AVAILABLE – CALL FOR DETAILS.
VARIABLE SPEED 500 CFM
- PART # 970.3910-0
- TEFC, IP55, degree of protection electric motors;
- Automatic starters with phase and sequence failure detection;
- Lubricated air-end;
- Low maintenance costs;
- Low oil consumption;
- Coolers are on the top of the machine, improves heat recovery at customer’s facilities;
- Modern design products;
- High efficiency electric motors;
- Thermostatic valve for working temperature control;
- 24V Command panel.
Operational Settings
-
- Operation method – load/unload
- Remote/local
- Auto restart
- Maintenance time to air filter, oil filter and air/oil separator, oil and main motor grease
- Pressure and temperature units
- Starts per hour
Error Messages
-
- Main motor and fan motor overloaded
- Phase fault or incorrect sequence
- Emergency
- High pressure
- High temperature
- Pressure and temperature sensor
Advantages
-
- Low Speed
- Low noise level
- Foam coated steel cabinet for noise reduction
Low discharge temperature
-
- Oversized cooling system
- Longer oil and oil separator life time
- Compressor prepared to handle higher ambient temperatures
- Discharge temperature around 10°C above the ambient.
Low maintenance
-
- Synthetic oil
- Robust belts
- Oversized separator elements – low ppm and longer life time
- Oversized separator elements – low ppm and longer life
- Easy access to components for quick and simple maintenance
Safety
-
- Belt guard
- 24 V command panel
- Fault and sequence phase relay
- High temperature protection
