Details
- WEG Electric Motor
- 7.5 HP motor reliably handles commercial duty demands

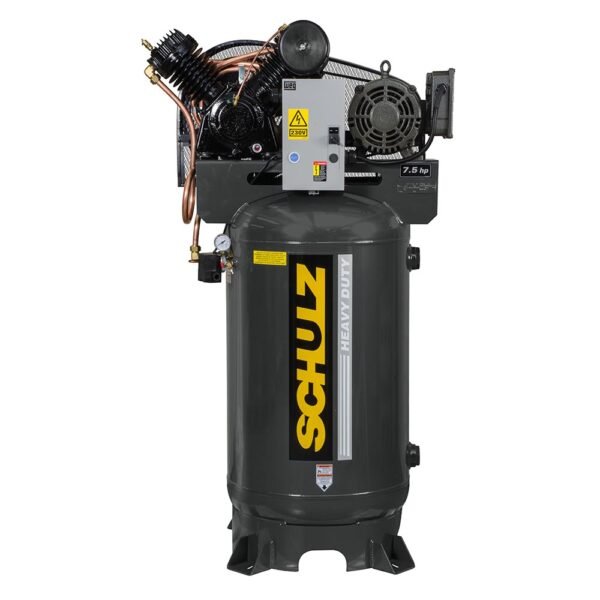

- SCHULZ AIR COMPRESSOR 7.5HP SINGLE PHASE

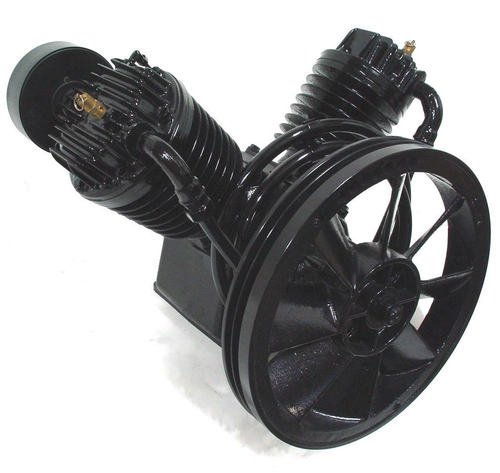

- V-Series Cast Iron Pump
- Runs cooler, lasts longer due to the space between each cylinder
- Deeper cylinder fins for additional heat dissipation
- Oversized Main Bearings
- Sturdy & reliable
- Swedish Steel Valves
- Quality components contribute to pump efficiency
- CNC Machined Components
- Accurate fit produces top-notch performance
- Notched Belts Standard
- Enclosed belt guard protects the belt & operators
- Powder Coated Components
- Resist rust & corrosion
- 1 Year Unit With 2 Year Pump Warranty
- Protects your investment
*Always consult your electrician for proper installation and proper wiring
| Product Category | Air Compressor – Stationary |
MOTOR
| Voltage | 230 Volt AC |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Recommended Breaker | Consult Certified Electrician |
ENGINE
| HP | 7.5 |
PUMP
| CFM | 30 |
| CFM Rated @ | 175 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
TANK
| Tank Size | 80 Gallons |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
OVERVIEW
| Weight | 728 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 48 Inches |
| Product Width | 42 Inches |
| Product Height | 81 Inches |
| Power Type | Electric |
