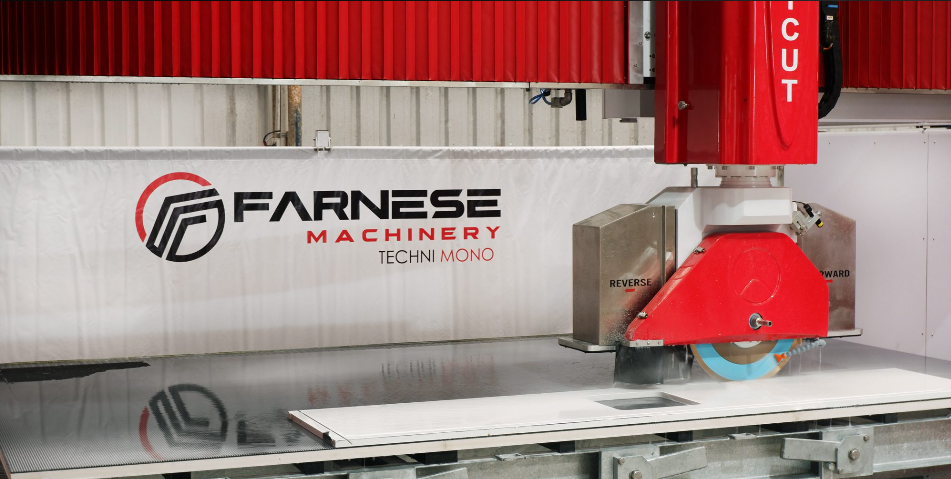

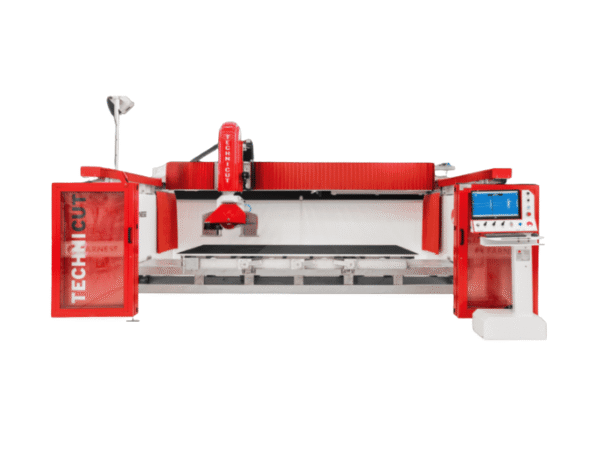

Technicut Mono - CNC Bridgesaw
The Farnese TECHNIMONO CNC BRIDGESAW is a full 5-axis CNC-controlled bridge saw built on a monoblock platform, sharing the same core functionality as the TECHNICUT. It features a user-friendly software and CAD/CAM system for easy template or DXF file integration, allowing for the programming of any 2D shape, including vacuum moves.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Summary of Features
• Monoblock frame
• Full 5 axis CNC controlled saw
• Easy to use interface and software
• CAD / CAM system
• Taglio Software – Advanced CAD/CAM Software solution option available
• Less waste – Accurate programming of cuts can result in less waste
• Vacuum Manipulation

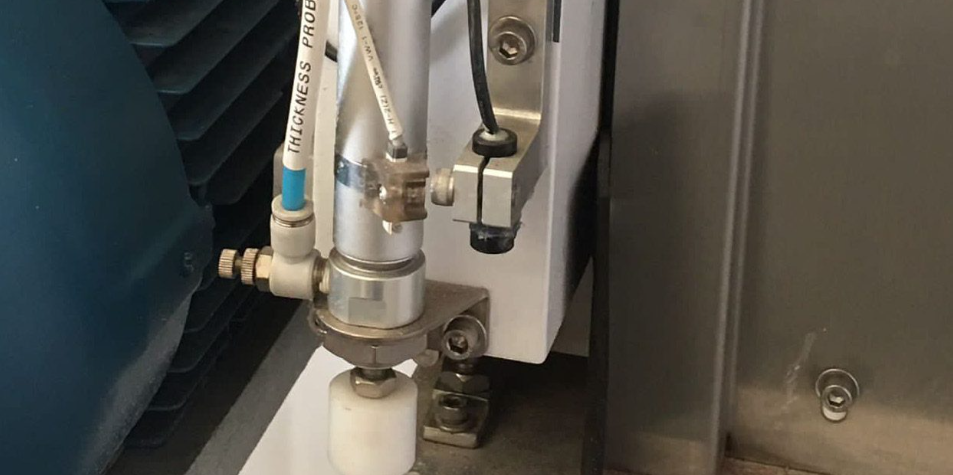

• Thickness measuring probe
• Blade measuring probe
• Onboard overhead camera

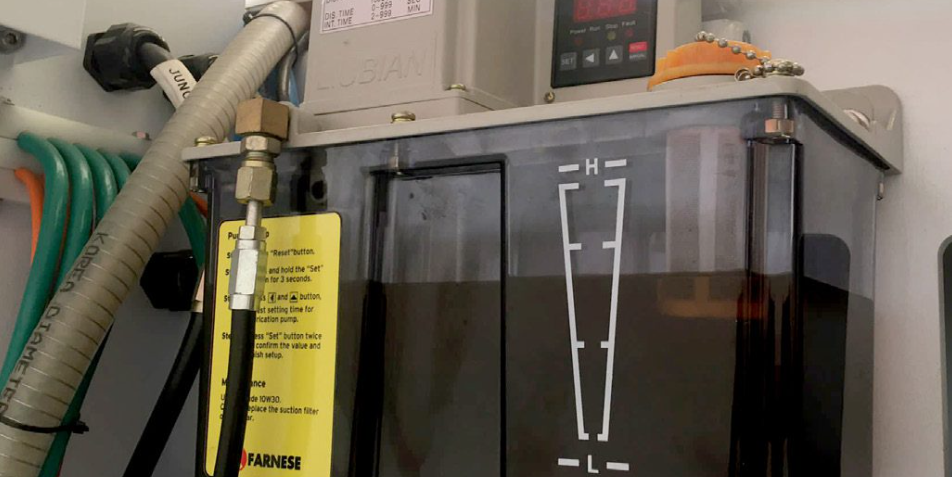

• Automatic lubrication system
• Hydraulic Tilting Table – Makes loading and unloading of slabs a whole lot easier
• Laser cutting guide – Provides a visual guide for blade positioning if operating in manual mode.
• After sales service • Australian company
• Local supply of spare parts
• Remote access for troubleshooting help
5 AXIS CNC CONTROL
The full 5-axis CNC control provides
unparalleled precision and flexibility,
allowing for complex and intricate
machining tasks with ease.
CAD/CAM SYSTEM
Makes it a breeze to work with templates
or DXF files, and allows any 2D shapes to
be programmed for cutting, including
vacuum moves.

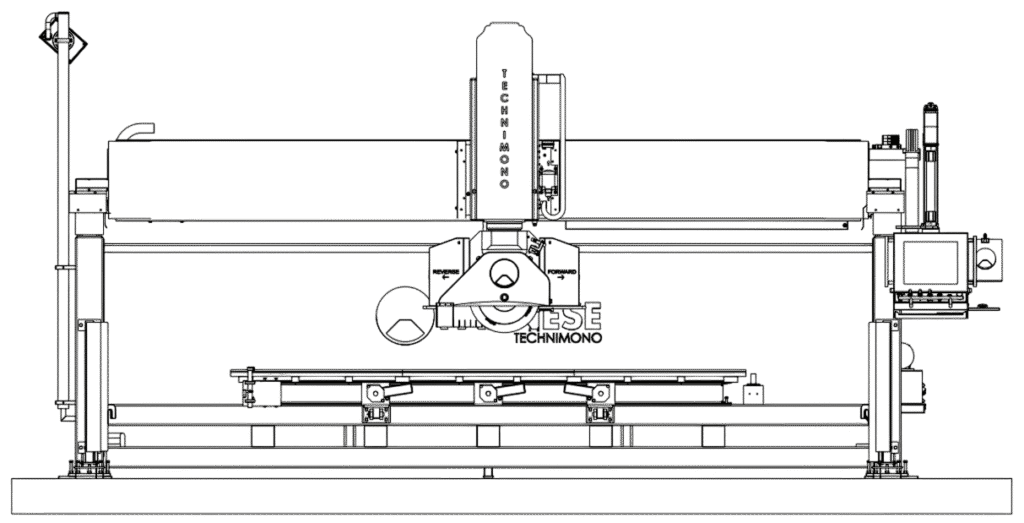

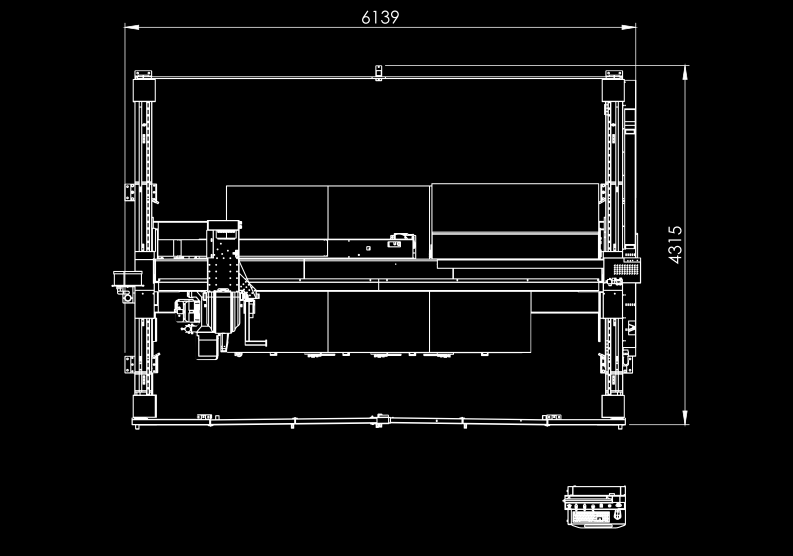

Product Technical Details & Dimensions
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
Length | 6838 mm | 269.2 in |
Width | 5977 mm | 235.3 in |
Height | 3304 mm | 130.1 in |
Weight | 5300 kg | 13000 lb |
Table | ||
Length | 3600 mm | 141.7 in |
Width | 2000 mm | 78.7 in |
Height | 850 mm | 33.5 in |
Rotation | No | No |
Tilt | Yes | Yes |
Features and Feeds | ||
X Stroke (Cross Travel Stroke) | 3800 mm | 149.6 in |
Y Stroke (Long Travel Stroke) | 2300 mm | 90.6 in |
Z Stroke (Head Up and Down) | 450 mm | 18 in |
Blade Diameter (Recommended) | 450 mm | 18 in |
Blade Diameter (Max) | 600 mm | 24 in |
Blade Shaft Diameter | 60 mm | 2.36 in |
Head Rotation | 0 – 360° | 0 – 360° |
Blade Tilt | 0 – 90° | 0 – 90° |
Drilling Capability | Yes | Yes |
Photo Camera | Yes | Yes |
Laser Cutting Guide | Yes | Yes |
Thickness Probe | Yes | Yes |
Vacuum Manipulators / Material Positioning | Yes | Yes |
Touch Screen | Yes | Yes |
Galvanized Rails and Table | Yes | Yes |
Automatic Lubrication | Yes | Yes |
Microsoft Windows and DXF CAD Compatible | YES | YES |
Main Spindle Power | 11 kW | 20 hp |
Main Spindle Speed | 800 – 3000 rpm | 800 – 3000 rpm |
Power Required | 400v 3ph 50Hz | 208v 3ph 60Hz |
32A+ Neutral | 60A | |
Connections Required (Supplied By Customer): | Power, Water, Compressed Air | |
Tooling | Consult Your Local Farnese Dealer For Any Tooling Required | |
