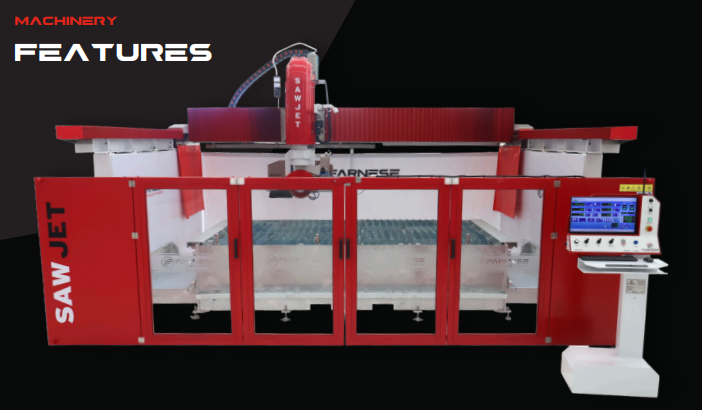

Technicut Sawjet - Combined waterjet with saw in a compact space
The Farnese SawJet offers a robust and reliable solution for fabricators needing both bridge saw and waterjet functionality. Its combination cutting head seamlessly integrates saw blade and waterjet technologies, enabling a wide range of cutting possibilities. The user-friendly software simplifies operation and allows for precise control over cutting parameters, whether using the saw blade or waterjet.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
USER INTERFACE
EASY TO USE INTERFACE AND
SOFTWARE.
LIMITLESS COMBINATIONS

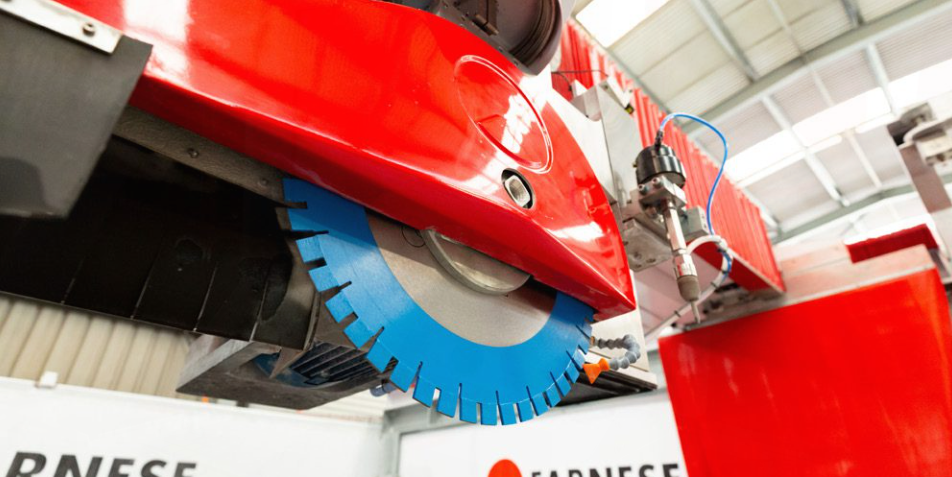

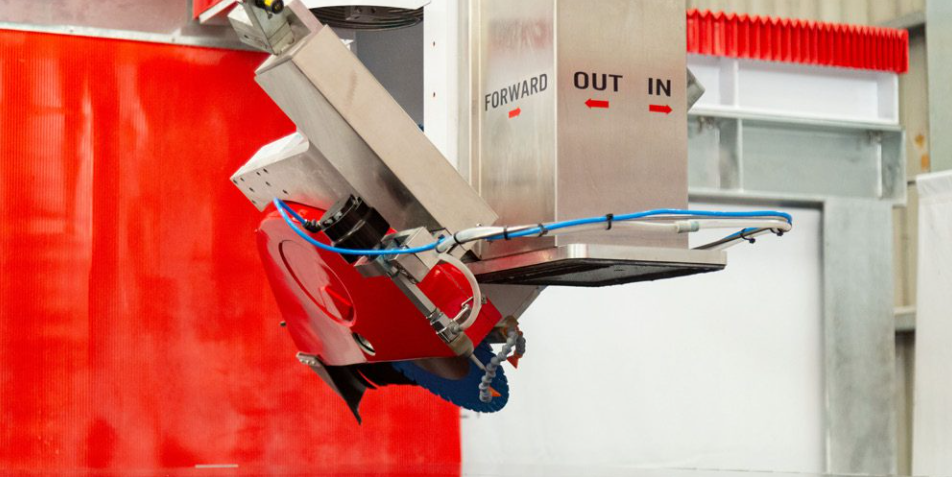

COMBINATION CUTTING HEAD ALLOWS
LIMITLESS CUT OUTS.
FILE FORMATS
CAD/CAM SYSTEM FOR USE WITH
TEMPLATES AND DXF FILES.
EASY USE
TILTING TABLE FOR EASE OF LOADING
AND UNLOADING.
CAMERA
USING THE ONBOARD CAMERA,
FABRICATORS CAN CAPTURE AN IMAGE
OF THE WHOLE SLAB ON THE TABLE.
Technical Specifications

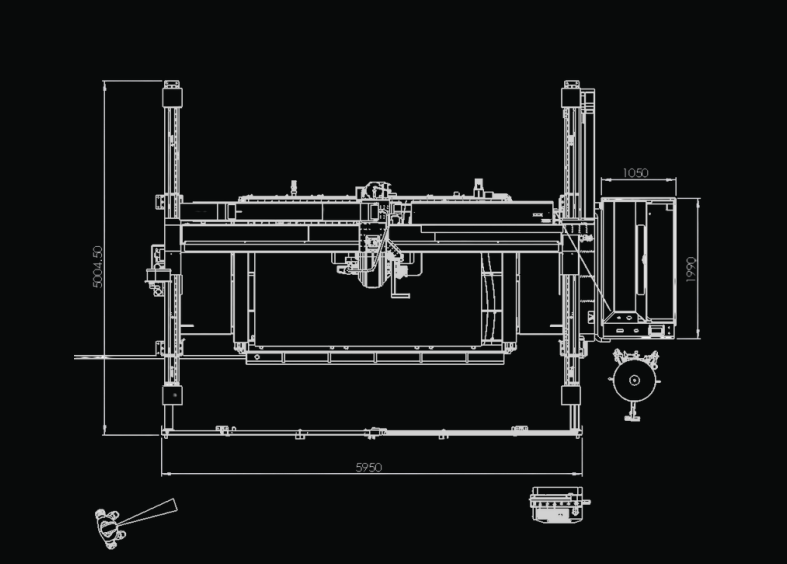

Product Technical Details & Dimensions
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
Length | 7900 mm | 311.0 in |
Depth | 5900 mm | 232.3 in |
Height | 3800 mm | 149.6 in |
Weight | 7500 kg | 16500.0 lb |
Table | ||
Width | 3400 mm | 133.9 in |
Depth | 2000 mm | 78.7 in |
Height | 950 mm | 37.4 in |
Rotation | No | No |
Tilt | Yes | Yes |
Features and Feeds | ||
X Stroke (Cross Travel Stroke) | 4000 mm | 157.5 in |
Y Stroke (Long Travel Stroke) | 3000 mm | 118.1 in |
Z Stroke (Head Up and Down) | 380 mm | 15.0 in |
Blade Diameter (Recommended) | 450 mm | 18 in |
Blade Shaft Diameter | 60 mm | 2.36 in |
Head Rotation | 0 – 360° | 0 – 360° |
Blade Tilt | 0 – 90° | 0 – 90° |
Waterjet Operating Pressure | 380M Pa | 55000 psi |
Garnet Feeder | Yes | Yes |
Photo Camera | Yes | Yes |
Laser Cutting Guide | Yes | Yes |
Thickness Probe | Yes | Yes |
Vacuum Manipulators / Material Positioning | Yes | Yes |
Touch Screen | Yes | Yes |
Galvanized Rails and Table | Yes | Yes |
Automatic Greasing | Yes | Yes |
Main Spindle Power | 14 kW | 20 hp |
Main Spindle Speed | 800 – 3000 rpm | 800 – 3000 rpm |
Power Required | 400v 3ph 50Hz | 208v 3ph 60Hz |
100A + Neutral | 200A | |
Connections Required (Supplied By Customer): | Power, Water, Compressed Air | |
Tooling | Consult Your Local Farnese Dealer For Any Tooling Required | |
