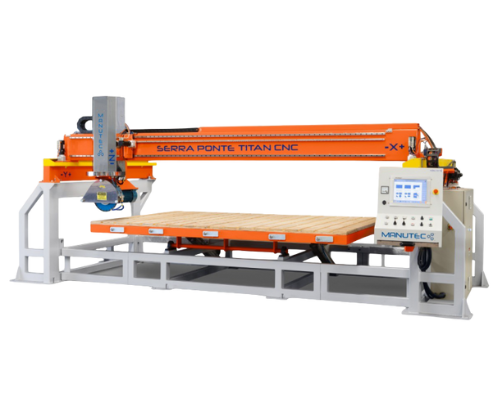

Titan 4 Axis Bridge Saw
The Titan 4-Axis Bridge Saw offers precision and efficiency for stone cutting. Powered by a 10 HP WEG motor with speed control, it features four-axis motion (X, Y, Z, U), a 15” touchscreen, and multiple cutting modes, including straight, “L”, and DXF designs.
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
Titan 4 Axis Bridge Saw
- Cutting dimensions: 3300 x 2200 mm;
- Uses 350 mm or 400 mm blade;
- Main WEG chainsaw-type motor dedicated to cutting applications, with 10 HP power and speed adjustment via inverter;
- 4-axis movement system: “X”, “Y”, “Z”, and “U” axes with servo motor and planetary reducer for precise movement and dimensional accuracy;
- Control panel with 15″ touchscreen featuring multiple cutting modes — straight, “L”, predefined shapes, and DXF-designed cuts;
- Product weight: 2800 kg;
- Overall dimensions: 5500 x 2600 x 2300 mm (length x width x height).
